Documentation (v1.0)

Passage.Js

Passage.js is a JavaScript library that allows merchants to securely collect sensitive payment information from users and send it directly to Valor. Merchants can integrate the library and fully customize the checkout form according to their requirements. Authentication is handled using a Client Token, which is generated via the GetClientToken API (explained in a later section).

---

Integrating Valor Payment Gateway with Passage.js

You can integrate Valor Payment Gateway using Passage.js by following these simple steps:

1. Generate Credentials
   Obtain your APP ID, APP Key, and EPI, which are required for integration.

2. Retrieve Client Token
   Use the GetClientToken API to generate a secure client token for authentication.

3. Include Passage.js Script
   Add the Passage.js library to your frontend and pass the received token to the data-clientToken attribute in your checkout form.

4. Create Checkout Form
   Build a form with the required fields for payment collection. Set the form’s action to the API endpoint that calls Valor’s Sale API.

5. Handle Sale API Response
   Process the response returned from the Sale API to confirm payment success or handle errors.

---

Getting ID and Keys

In order to integrate and use Passage.js, the merchants will need to use their APP ID, APP Key and EPI to generate a Client Token.

You can take the following steps to generate or retrieve your keys:

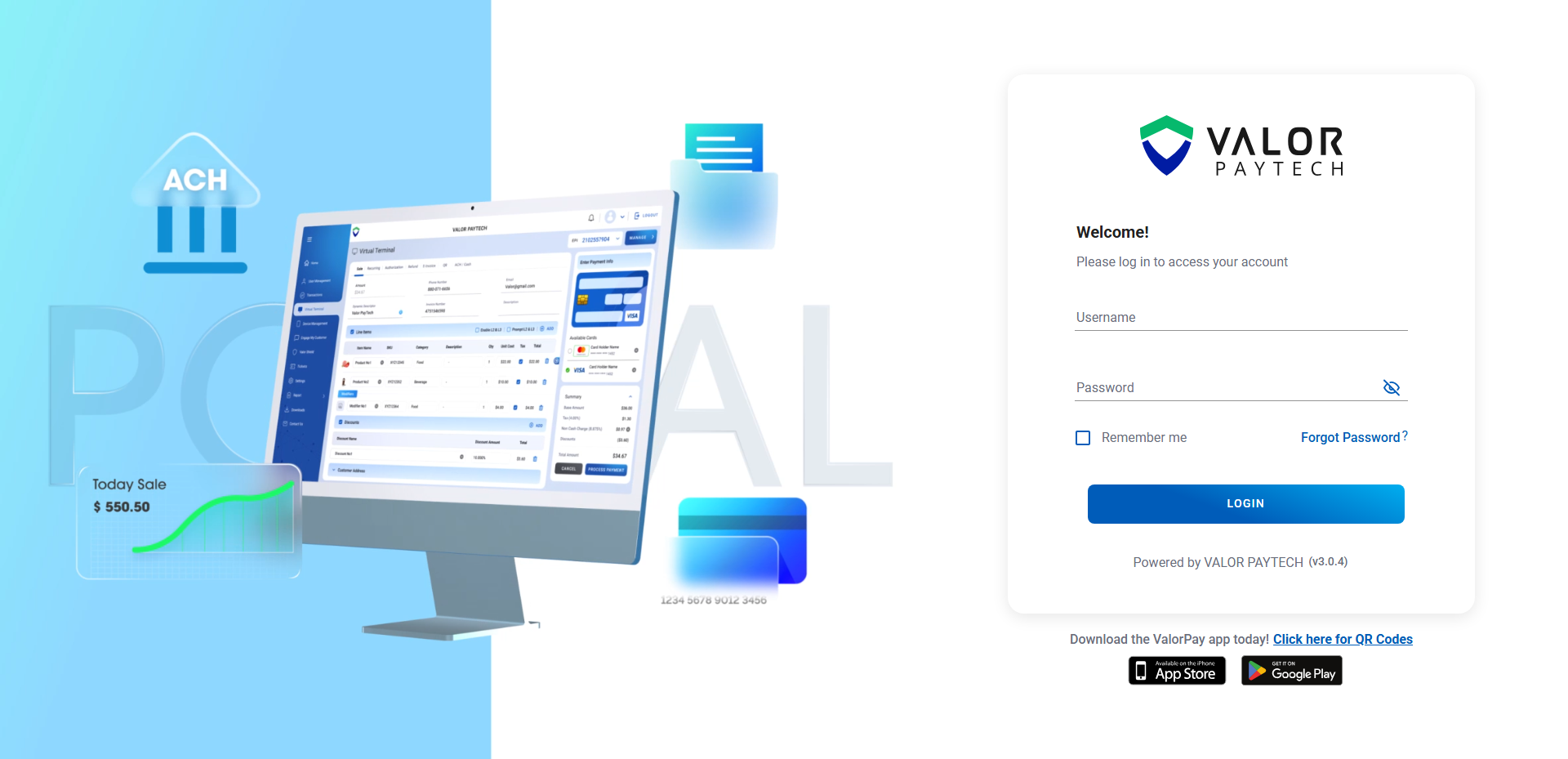

Step 1: Login to the Valor portal

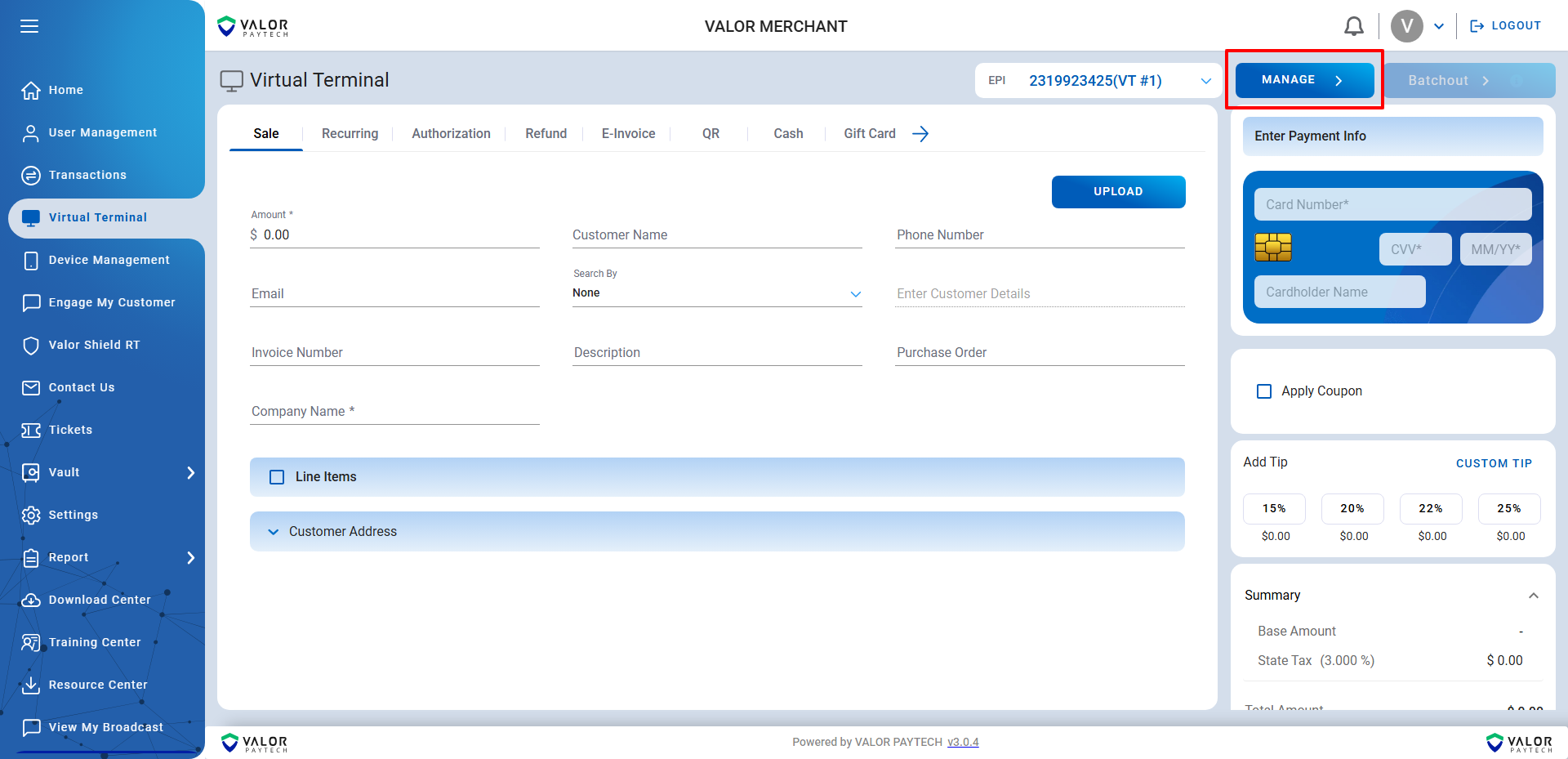

Step 2: Click on "Manage" option in "Virtual Terminal" in side menu

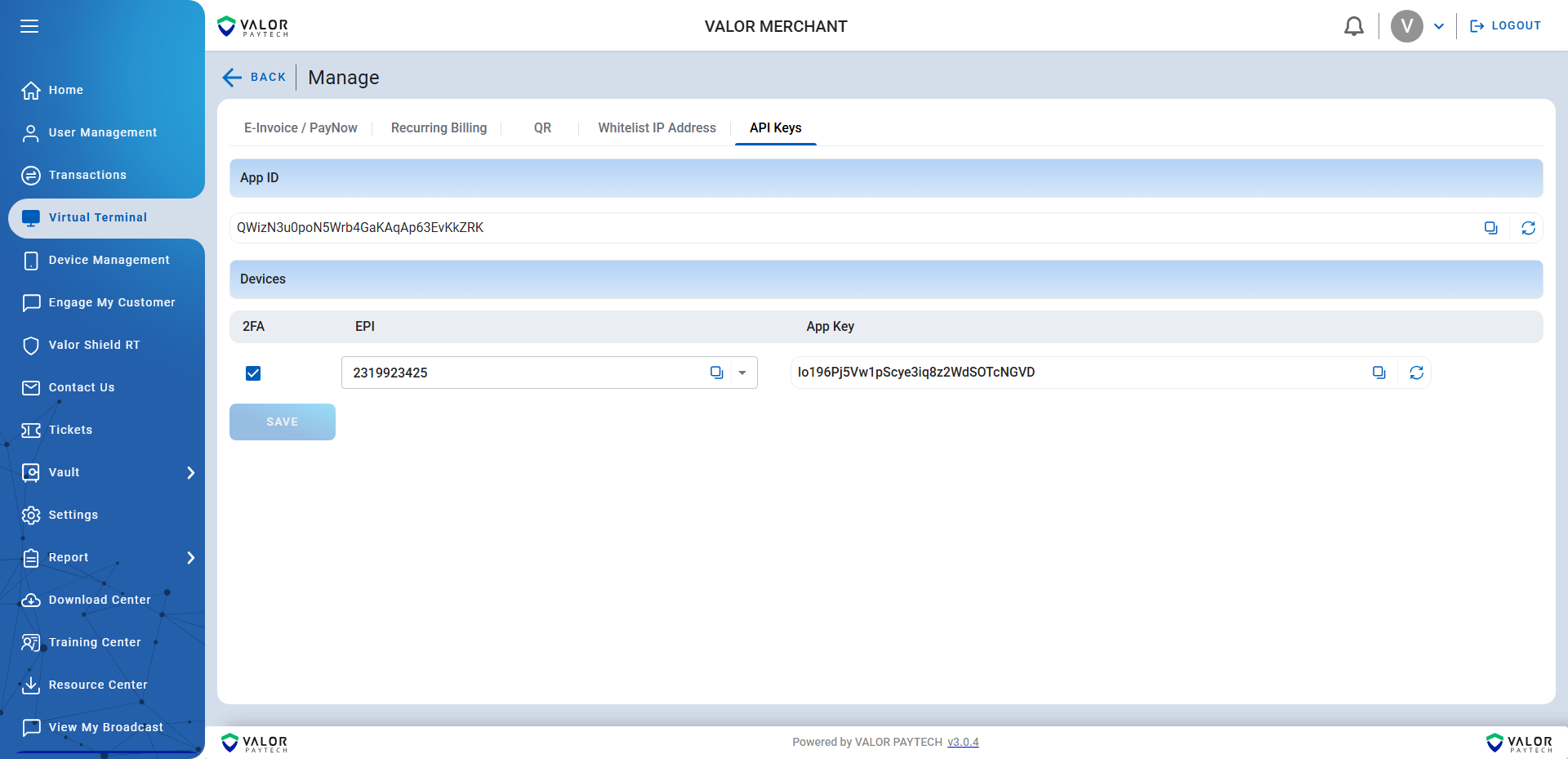

Step 3: Under "API KEYS" you can find your APP ID, APP Key and EPI

---

Generating Client Token

Merchants can generate a Client Token to handle authentication instead of using APP ID and APP Key. The generated token should be used in the Passage.js script via the data-clientToken attribute.

Example Client Token:

7b9e2a55-720d-4533-bb70-9376a378eae4

API Endpoints for Client Token

Environment	URL
Demo	https://securelink-staging.valorpaytech.com:4430
Live	https://securelink.valorpaytech.com:4430

Sample API Calls

PHP

<?php
require_once('vendor/autoload.php');

$client = new \GuzzleHttp\Client();

$response = $client->request('POST', 'https://securelink-staging.valorpaytech.com:4430/?appid=WaJeJErcv5xpqZa2UZz6LZod5MSyyfJw&appkey=53PWdki5U0PGSVhRnVoFsfVSbuDutsA8&epi=2203082193&txn_type=sale&token=26F9A99643197174FE11B29A4A76145773C0B93D&amount=5.00&surchargeIndicator=0&surchargeAmount=5.00&phone=5628398878&address1=2%20Jericho%20Plz&city=Jericho&state=NY&shipping_country=US&billing_country=US&zip=50001&saleAPI=', [
  'headers' => [
    'accept' => 'application/json',
  ],
]);

echo $response->getBody();

Python

import requests

url = "https://securelink-staging.valorpaytech.com:4430/?appid=WaJeJErcv5xpqZa2UZz6LZod5MSyyfJw&appkey=53PWdki5U0PGSVhRnVoFsfVSbuDutsA8&epi=2203082193&txn_type=sale&token=26F9A99643197174FE11B29A4A76145773C0B93D&amount=5.00&surchargeIndicator=0&surchargeAmount=5.00&phone=5628398878&address1=2%20Jericho%20Plz&city=Jericho&state=NY&shipping_country=US&billing_country=US&zip=50001&saleAPI="

headers = {"accept": "application/json"}

response = requests.post(url, headers=headers)

print(response.text)

NodeJs

const sdk = require('api')('@valorapi/v1.0#2lhelnbcau0v');

sdk.saleApi({
  appid: 'WaJeJErcv5xpqZa2UZz6LZod5MSyyfJw',
  appkey: '53PWdki5U0PGSVhRnVoFsfVSbuDutsA8',
  epi: '2203082193',
  txn_type: 'sale',
  token: '26F9A99643197174FE11B29A4A76145773C0B93D',
  amount: '5.00',
  surchargeIndicator: '0',
  surchargeAmount: '5.00',
  phone: '5628398878',
  address1: '2%20Jericho%20Plz',
  city: 'Jericho',
  state: 'NY',
  shipping_country: 'US',
  billing_country: 'US',
  zip: '50001',
  saleAPI: ''
})
  .then(({ data }) => console.log(data))
  .catch(err => console.error(err));

C

CURL *hnd = curl_easy_init();

curl_easy_setopt(hnd, CURLOPT_CUSTOMREQUEST, "POST");
curl_easy_setopt(hnd, CURLOPT_WRITEDATA, stdout);
curl_easy_setopt(hnd, CURLOPT_URL, "https://securelink-staging.valorpaytech.com:4430/?appid=WaJeJErcv5xpqZa2UZz6LZod5MSyyfJw&appkey=53PWdki5U0PGSVhRnVoFsfVSbuDutsA8&epi=2203082193&txn_type=sale&token=26F9A99643197174FE11B29A4A76145773C0B93D&amount=5.00&surchargeIndicator=0&surchargeAmount=5.00&phone=5628398878&address1=2%20Jericho%20Plz&city=Jericho&state=NY&shipping_country=US&billing_country=US&zip=50001&saleAPI=");

struct curl_slist *headers = NULL;
headers = curl_slist_append(headers, "accept: application/json");
curl_easy_setopt(hnd, CURLOPT_HTTPHEADER, headers);

CURLcode ret = curl_easy_perform(hnd);

C#

using RestSharp;


var options = new RestClientOptions("https://securelink-staging.valorpaytech.com:4430/?appid=WaJeJErcv5xpqZa2UZz6LZod5MSyyfJw&appkey=53PWdki5U0PGSVhRnVoFsfVSbuDutsA8&epi=2203082193&txn_type=sale&token=26F9A99643197174FE11B29A4A76145773C0B93D&amount=5.00&surchargeIndicator=0&surchargeAmount=5.00&phone=5628398878&address1=2%20Jericho%20Plz&city=Jericho&state=NY&shipping_country=US&billing_country=US&zip=50001&saleAPI=");
var client = new RestClient(options);
var request = new RestRequest("");
request.AddHeader("accept", "application/json");
var response = await client.PostAsync(request);

Console.WriteLine("{0}", response.Content);

Go

package main

import (
	"fmt"
	"net/http"
	"io"
)

func main() {

	url := "https://securelink-staging.valorpaytech.com:4430/?appid=WaJeJErcv5xpqZa2UZz6LZod5MSyyfJw&appkey=53PWdki5U0PGSVhRnVoFsfVSbuDutsA8&epi=2203082193&txn_type=sale&token=26F9A99643197174FE11B29A4A76145773C0B93D&amount=5.00&surchargeIndicator=0&surchargeAmount=5.00&phone=5628398878&address1=2%20Jericho%20Plz&city=Jericho&state=NY&shipping_country=US&billing_country=US&zip=50001&saleAPI="

	req, _ := http.NewRequest("POST", url, nil)

	req.Header.Add("accept", "application/json")

	res, _ := http.DefaultClient.Do(req)

	defer res.Body.Close()
	body, _ := io.ReadAll(res.Body)

	fmt.Println(string(body))

}

Ruby

require 'uri'
require 'net/http'

url = URI("https://securelink-staging.valorpaytech.com:4430/?appid=WaJeJErcv5xpqZa2UZz6LZod5MSyyfJw&appkey=53PWdki5U0PGSVhRnVoFsfVSbuDutsA8&epi=2203082193&txn_type=sale&token=26F9A99643197174FE11B29A4A76145773C0B93D&amount=5.00&surchargeIndicator=0&surchargeAmount=5.00&phone=5628398878&address1=2%20Jericho%20Plz&city=Jericho&state=NY&shipping_country=US&billing_country=US&zip=50001&saleAPI=")

http = Net::HTTP.new(url.host, url.port)
http.use_ssl = true

request = Net::HTTP::Post.new(url)
request["accept"] = 'application/json'

response = http.request(request)
puts response.read_body

Sample Response

JSON

{
  "error_no": "S00",
  "error_code": "00",
  "clientToken": "7b9e2a55-720d-4533-bb70-9376a378eae4",
  "validity": "2023-01-05 12:44:01"
}

Required Fields

Field	Type	Length	Mandatory	Description
appid	string	32	Yes	Contact Valor PayTech
appkey	string	32	Yes	Contact Valor PayTech
txn_type	string	15	Yes	Type of transaction (e.g., sale)
epi	numeric	10	Yes	Merchant EPI number

---

Integrating the Script

After retrieving the client token, include the Passage.js script on your checkout page.

Basic Integration

HTML

<script
    src="https://js.valorpaytech.com/V1/js/Passage.min.js"
    data-name="valor_passage"
    data-clientToken="YOUR_TOKEN"
    data-epi="YOUR_EPI">
</script>

This automatically renders the default card fields: Card Number, Expiry Date, and CVV.

Optional Script Parameters

Attribute Name	Example Value	Description
data-clientToken	7b9e2a55-720d-4533-bb70-9376a378eae4	Client token required for authentication.
data-epi	2104704629	Merchant EPI number.
data-demo	true	Enables demo mode. Remove to process live transactions.
data-variant	inline / lightbox	Display mode: inline (default) or lightbox popup.
data-submitText	Pay $5	Customize submit button text.
data-submitBg	#000	Submit button background color.
data-submitColor	#fff	Submit button text color.
data-valorLogo	false	Hide Valor logo (default: true).
data-cardholderName	true	Display cardholder name field.
data-defaultCardholderName	John Doe	Pre-fill cardholder name.
data-email	true	Display email field.
data-defaultEmail	[email protected]	Pre-fill email.
data-phone	true	Display phone field.
data-defaultPhone	[phone]	Pre-fill phone.
data-billingAddress	true	Display billing address fields.
data-defaultAddress1	3636	Pre-fill Address Line 1.
data-defaultAddress2	33rd St	Pre-fill Address Line 2.
data-defaultCity	New York City	Pre-fill City.
data-defaultState	New York	Pre-fill State.
data-url	https://securelink-staging.valorpaytech.com	Demo environment URL.
data-name	valor_passage	Passage instance name.
data-additionalInfo	true	Enable additional input fields like order number or invoice number.
data-additionalType	order_number,invoice_number,ticket_number	Types of additional inputs to display.
data-amount	Custom amount value	Set a custom payment amount.

---

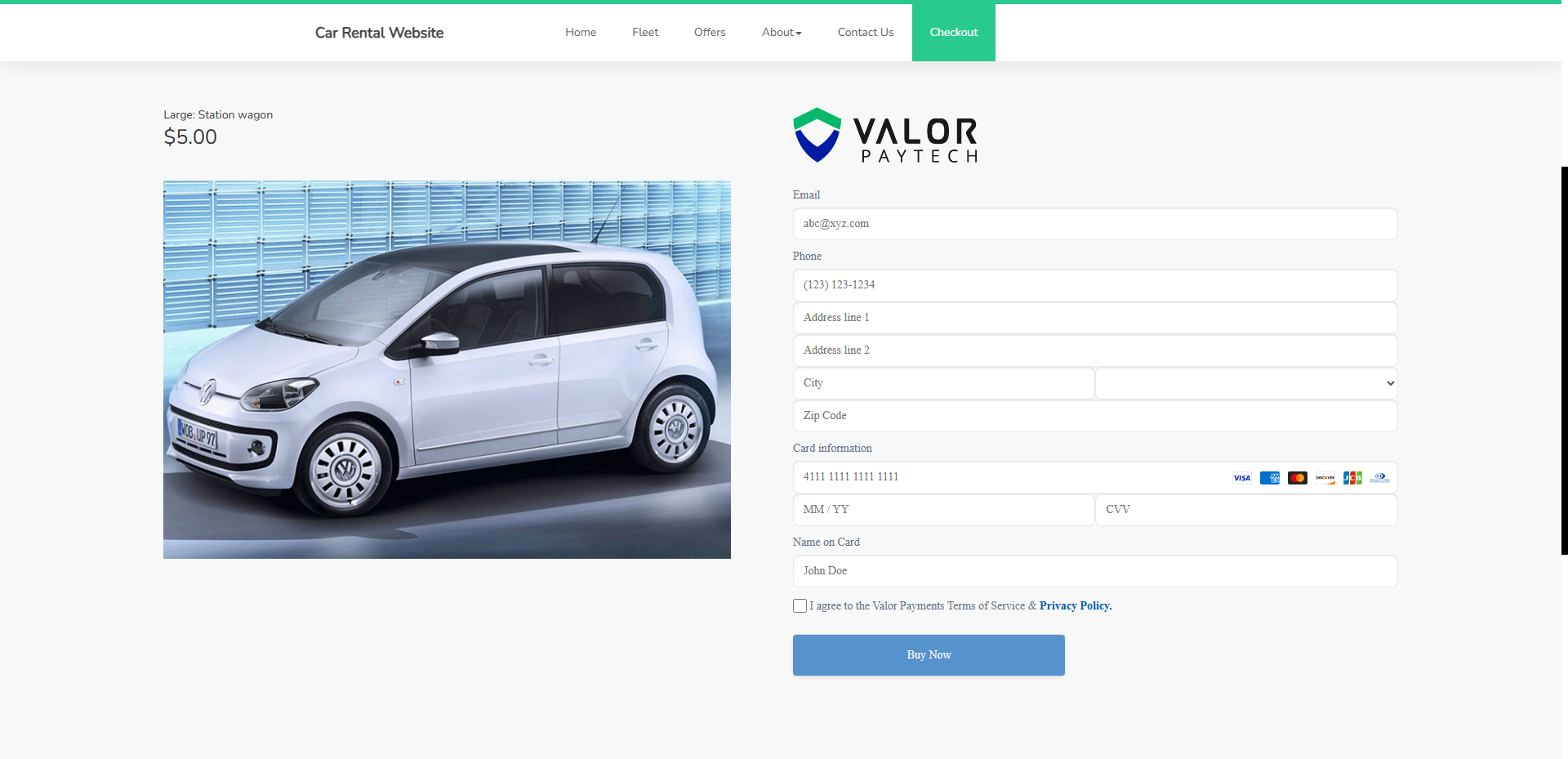

Integrating the Form

You can integrate the payment form using either inline or lightbox layouts:

• Inline: All fields render directly on the checkout page. Default mode.
• Lightbox: Opens card fields in a popup on submit. Use data-variant="lightbox".

Example Form

HTML

<form action="https://path-to-your-api-call" method="post" id="valor-checkout-form">
    <input type="hidden" name="orderId" value="1"/>
    <div id="valor-fields"></div>
</form>

Form Submit Event

JavaScript

document.addEventListener("passageHiddenFormAdded", function(event) {
    const form = event.detail.form;
    form.addEventListener("submit", function(event) {
        event.preventDefault();
    });
});

---

Vault API – Add Payment Profile Token

Add a card token to a Vault customer profile.

Endpoint:
POST https://demo.valorpaytech.com/api/valor-vault/addpaymentprofiletoken/{vault_id}

Request Payload

JSON

{
  "token": "<TOKEN>"
}

Fields

Field	Type	Required	Description
token	string	Yes	Secure token representing the card
cardholder_name	string	No	Optional cardholder name

Integration Steps

1. Generate Card Token: Frontend collects payment info and generates a token.
2. Create Vault Customer Profile: Save the returned vault_id.
3. Add Payment Profile Token: Call /addpaymentprofiletoken/{vault_id} to associate the token.

---

---

Handling the Response

Once the form is submitted, it triggers the Sale API call to process the payment.
After the transaction is completed, the API will return a response object that can be used to display a confirmation or error message to the customer, for example, by redirecting them to a Thank You page or showing an error popup.

The response will contain information such as the transaction status, response code, and authorization details.

You can find detailed information about the Sale API request and response structure, including all parameters, in the official API documentation.
For a comprehensive list of error codes and their meanings, refer to the Valor API Documentation.

---

Test Card & AVS Information

Field	Value
Address	8320
Zip Code	85284
