API Reference

VP Series - API Guide

SDK Service Initialization

Note: This method is only applicable for Valor VP Series.

Method:

SDK_Service_Int(context: Context, Onresult: OnResult)

This method is used to start the valor SDK service.
This method needs to call at every bootup.

Parameters:

context | [IN] context | context

callback | [IN] OnResult | interface OnResult that implements mandatory callback events (Callback function).

Interface: OnResult

Success() – valor SDK service started successfully.

Onprocess(progressMessage: String) – Not Used.

Fail (errorMessage: String) - Fail to start valor SDK service.

Load Configuration

Method:

Loadconfig(context: Context, Onresult: OnResult)

This method generates and loads the EMV & CLESS configuration File.

This method needs to call at every bootup.

Parameters:

context | [IN] context | context

callback | [IN] OnResult | interface OnResult that implements mandatory callback events (Callback function).

Interface: OnResult

Success() – Configuration file loaded successfully .

Onprocess(progressMessage: String) – The progress message has shown

Fail (errorMessage: String) - Fail to load configuration file.

SDK Initialization

Method:

SDKInt(context: Context,GiftCardTye:Int, Onresult: OnResult)

This method is used to initialize the SDK module & EMV configuration to load.

Note: Must call after the Load configuration.

Parameters:

context | [IN] context | context
GiftcardType | [IN] int | support gift card type
1 –VALUE_TECH, 2- Factor4

callback | [IN] OnResult | interface OnResult that implements mandatory callback events (Callback function).

Interface: OnResult

Success() – Initialization successfully.

Onprocess(progressMessage: String?) – The progress message has shown

Fail (errorMessage: String?) - Initialization Fail.

Download Rki

Method:

DownloadRKI(context: Context, Keygroup: String,Mode:Int, Onresult: OnRKIResult)

This method is used for downloading Live or Demo RKI.

Parameters:

context | [IN] context | context

String | [IN] keygroup | Custom group key name

String | [IN] Service mode| 0 –Live RKI, 1- Demo RKI

callback | [IN] OnRKIResult | interface OnRKIResult that implements mandatory callback events (Callback function).

Interface: OnRKIResult

Success() – This event will be triggered when device is successfully download RKI

onProcess(progressMessage: String?) – The progress message on downloading Status.

Fail(errorMessage: String?) - RKI download failed.

Get Device Information

Method:

VL series then to use

GetDeviceInfo(OnResult: OnDeviceInfoResult)

VP series then to use

GetDeviceInfo(context: Context, OnResult: OnDeviceInfoResult)

This method is used for getting device information like Firmware version, EMV lib version, CLESS version etc.

Parameters:

[IN] OnDeviceInfoResult - interface OnDeviceInfoResult that implements mandatory callback events (Callback function).

Interface: OnDeviceInfoResult

Success(deviceInfoVo: DeviceInfoVo) -Device information read from terminal successfully.

Parameters

deviceInfo – Output response of get device information.

Fail(errorMessage: String) - Device information read fails.

Parameters

errorMessage – error message

Start Transaction

Method:

StartTran(context: Context, lTransactonInfo:TransactionInfo, Onresult:OnCardReadListener)

This method is to read the card information and complete the EMV transaction process.

Parameters:

[IN]context – context

[IN]Transactioninfo–transaction input related data

[IN]OnCardReadListener - interface OnCardReadListener that implements mandatory callback events (Callback function).

Interface: OnCardReadListener

Success(cardInfo: CardInfo) – Read the card information successfully

Parameters

cardInfo – Output response of card information

Fail(errorMessage: String) - This event will be triggered when reading the card information fails. Refer the possible error here.

onNotification (Message: String,Mode:Int)

Parameters

Message – Notification message

Mode – 0 -> User to close the Notification dialog.

1-> User to show the Notification dialog.

onWarning(Message: String) - User need to show warning alert dialog.

onAppSelection(list:String) – Only applicable for EMV multi-application card. Inside the EMV card more than one AID present, then client application needs to show the EMV application selection.

onProcess(progressMessage: String?) – transaction is in the processing state.

Parameters

progressMessage – Progress message

Perform Transaction

Method:

performTxn(context: Context, lTransactonInfo: TranInputVo, Onresult: OnPerformTxnListener)

This method is used to communicate with the host and complete the transaction functionalities.

Parameters:

[IN]context – context

[IN]TranInputvo – Input transaction card related data

[IN] OnPerformTxnListener - interface OnPerformTxnListener that implements mandatory callback events (Callback function).

Interface: OnPerformTxnListener

onSuccess(outputVo:Any?) – triggered when transaction performed successfully.

Parameters

Any– Output response of Perform transaction information.

Any accepts all types of objects. For each transaction module, objects may vary. We need to convert objects into respective types of value according to the transaction module.

TranOutputVo tranOutputVo = (TranOutputVo) outputVo;

onFailure(errorMessage: String, outputVo: Any?, status: Int)

– This event will be triggered when transaction fails. Refer the possible error here .

Parameters

errorMessage – error message

status – get reversal transactions available status

1 – Reversal transaction is available

0 – Reversal transaction not available

onProgress(progressMessage: String?) - the transaction is in processing state

Parameters

progressMessage – Progress message

Pin Input

Method:

GetOnlinePin(context:Context, processorIndex:Int, Pan: String, Timeout: Int, Onresult: OnlinePinListener)

This method is used for getting pin from pinpad.

Parameters:

[IN]context – context

[IN]processorIndex– processor type

[IN]pan– Card Number

[IN]Timeout– pinpad timeout

[IN]OnlinePinListener - interface OnlinePinListener that implements mandatory callback events (Callback function).

Interface: OnlinePinListener

Success(pinblock:String,ksn:String)– Encrypted Pin Block generated successfully

Parameters

pinblock – Encrypted pin

ksn – pin block ksn

Fail(errorMessage: String)

– This event will be triggered when failure state

Fetch Transaction

Method:

FechPerformTxn(context: Context, lFetchInputVo:FetchInputVo, Onresult:OnPerformTxnListener)

This method is used for fetching the transaction details of Tip adjustment,void,ticket ,open summary,closed summary,batch report,detailed report.

Parameters:

[IN]context – context

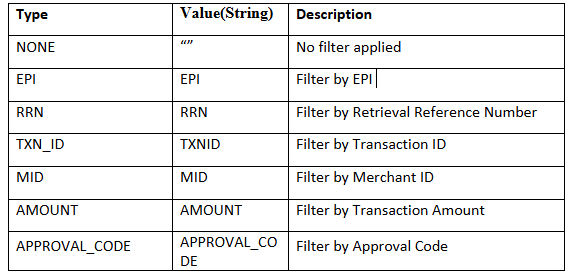

[IN] lFetchInputVo – Input data to fetch the transaction.

[IN] OnPerformTxnListener - interface OnPerformTxnListener that implements mandatory callback events (Callback function).

Interface: OnPerformTxnListener

onSuccess(outputVo:Any?)– This event will be triggered when transaction information fetched successfully.

Parameters

outputVo – Output response of fetch transaction.

Any– Any accepts all types of objects. For each transaction module, objects may vary. We need to convert objects into respective types of value according to the transaction module.

  • Void, Tip adjustment,Ticket ( List FetchList = (List) outputdata;)
  • Open Summary, Close Summary (SummayVO summaryvo = (SummayVO) outputdata;)
  • Batch Report ( List< BatchVo > batchvo = (List< BatchVo >) outputdata;)
  • Detailed Report (List< ReportSummaryVO > reportsummaryvo = (List< ReportSummaryVO >) outputdata;)

onFailure(errorMessage: String, outputdata:Any?, status: Int)

This event will be triggered when transaction info fetch fails.

Parameters

errorMessage – error message

status –Reversal transactions available status.

1 – Reversal transaction is available

0 – Reversal transaction not available

onProgress(progressMessage: String?) – the progress message has shown

Parameters

progressMessage – Progress message

Settlement

Method:

Settlement (context: Context, lFetchInputVo:FetchInputVo, Onresult:OnPerformTxnListener)

This method is used for settling the transaction.

Parameters:

[IN]context – context

[IN] lFetchInputVo – Input data to settle the transaction

[IN] OnPerformTxnListener - interface OnPerformTxnListener that implements mandatory callback events (Callback function).

Interface: OnPerformTxnListener

onSuccess(outputVo:Any?)– This event will be triggered when transaction information settled successfully.

Parameters

outputVo – Output response of Settlement.

Any– Any accepts all types of objects. For each transaction module, objects may vary. We need to convert objects into respective types of value according to the transaction module.

  • Settlement (SummayVO summaryvo = (SummayVO) outputdata;)

onFailure(errorMessage: String, outputdata:Any?, status: Int)

This event will be triggered when settlement fails.

Parameters

errorMessage – error message

onProgress(progressMessage: String?) – the progress message has shown

Parameters

progressMessage – Progress message

Print Receipt

Method:

PrintReceipt(lTransactonInfo: TranOutputVo, printerInfo:PrintInputVo, Onresult:ReceiptListener)

This method is used to print the transaction information.

Parameters:

[IN]TranOutputVo– output response of perform transaction

[IN]PrintInputVo– print input information

[IN]ReceiptListener - interface ReceiptListener that implements mandatory callback events(Callback function).

Interface: ReceiptListener

onSuccess() – This event will be triggered when transaction info is successfully printed

onFailure(errorMessage: String?) - This event will be triggered on printer failure

Clear Reversal

Method:

clearReversal():int

This method is used for clear reversal transaction data.

Returns

1 – Successfully cleared

0 – No records Found

Printer

Class:ValorPrint

ValorPrint class is used to print the text information, image in the paper.

Method:

initPrinter():Int

This method is used to initialize the printer.

This method needs to call before adding text to drawtext methods.

drawtext(text: String?, textSize: Float, bold: Boolean, align: Paint.Align?): Int

This method is used to add text at a line.

drawTwotext(leftText: String?, rightText: String?, textSize: Float, bold: Boolean):Int

This method is used to add two texts at a line (LEFT, RIGHT).

drawThreetext(leftText: String?,centerText:String?,rightText:String?,textSize: Float,bold: Boolean):Int

This method is used to add three texts at a line (LEFT, CENTER, RIGHT).

drawMultitext(percents: IntArray?,texts: Array?,textSize: Float,
bold: Boolean):Int

This method is used to add multiple texts and allocate the width according to percents. (maximum four texts).

drawimage(image: Bitmap?):Int

This method is used to add the image.

drawtextOffset():Int

This method is used to increase/decrease the space between the lines.

drawReverseText(text: String?, textSize: Float, bold: Boolean, align: Paint.Align

) :Int

This method is used to add text with reverse color.

feedPaper(height: Float):Int

This method is used to add empty space without printing.

print():Int

This method is used to print the buffer data.

Parameters:

String | [IN]text– text to be drawn.

float| [IN]textSize– set the size of the text to be drawn.

boolean| [IN]bold– true to set the text to bold, false to normal.

| [IN]align–set the alignment of text to be drawn (CENTER, RIGHT, LEFT).

String | [IN]leftText– text to be drawn on left side of the paper.

String | [IN]centerText– text to be drawn on center of the paper.

String | [IN**]rightText**– text to be drawn on right side of the paper.

float | [IN]offsetY– size to increase/decrease the space between lines

Bitmap | [IN]image– the image to be drawn

String[]| [IN]texts– multiple text to be drawn

Int[]| [IN]percents– set the ratio of text width to paper, from 0-100,
0 to automatically adapt the occupied width according to the text width.
If this value exceeds the remaining width, the remaining width is automatically used

float| [IN]height– height of the empty space to be drawn.

Returns:

0 – success

-1 – OUT_OF_PAPER

-2 – INIT_PRINTER_ERROR

-3 – PRINT_DATA_ERROR

Second Screen Display (Customer Face Screen) (VP800 Only)

Create Second Screen Display ( YourClass extends BasePresentation)

Extend the BasePresentation class to access the second screen display.

The sample codes are:

Call Second Screen Display

new Secondscreen(context).show();

Remove Second Screen

BasePresentation.removeAllPresentations(context);

Check the Dual Screen is Available or Not

Payment_SDK_Init

Method:

Payment_SDK_Init(context: Context, GiftCardTye:Int,Onresult: OnResult)
This method initializes the payment SDK. It consolidates the following processes:
• SDK_Service_Int
• LoadConfig
• SDKInt
All necessary service and configuration instances are initialized through this method.

Parameters:

[IN]context – context
[IN] GiftcardType – Type of Gift Card to initialize:
1 –VALUE_TECH,
2- Factor4
[IN] Onresult - Callback interface for handling SDK initialization events.

Interface: OnResult

Success() Called when the SDK has been initialized successfully..
Onprocess(progressMessage: String?) – Called to provide progress updates during initialization.
Fail (errorMessage: String?) - Called when SDK initialization fails, with error details.

BinLookUp

Method:

BinLookUp(EPI: String,CardBIN:String, ISV_key: String,APIUrl:String, ResponseTimeout:Int, Onresult: OnAPIResult)
This method is used to check whether a card is a credit or debit card by querying card BIN information.

Parameters:

[IN]EPI Device input for the current device.
[IN]CardBin – The first 6 digits of the card number (BIN).
[IN] ISV_key – ISV unique Key
[IN]APIurl – Valor API server URL to send the request. [IN]

ResponseTimeout – Timeout for the BinLookup response in seconds.
[IN] OnAPIResult - Callback interface implementing mandatory callback events.

Interface: OnAPIResult

This interface must be implemented by the caller to handle the results of the BinLookup operation.

onSuccess(outputVo:Any?)– Triggered when BinLookup successfully retrieves card information.
Parameters
outputVo – Output response object containing card number info
BinLookupInfo binLookupInfo= (BinLookupInfo) outputdata;

Onprogress(progressMessage: String?) – Called to provide progress updates during the operation.
onFailure (errorMessage: String?) - Called when BinLookup fails, providing an error message.

FetchTxnList

Method:

FetchTxnList(fetchAPIVo: FetchApiVo,Onresult: OnAPIResult)
This method retrieves transactions based on multiple filter criteria such as date ranges, transaction types, card schemes, RRN (Retrieval Reference Number), approval codes, etc.

Parameters:

[IN] fetchAPIVo – Input object containing the transaction filter criteria.
[IN] OnAPIResult - Callback interface to handle the results of the FetchTxnList operation.
Interface: OnAPIResult
This interface must be implemented by the caller to handle callback events from FetchTxnList
onSuccess(outputVo:Any?)– Triggered when transactions are successfully retrieved.
Parameters
outputVo – Output response object containing List transaction info

List FetchList = (List) outputVo;

Onprogress(progressMessage: String?) – Called to provide progress updates during the operation.
onFailure (errorMessage: String?) - Called when the fetch operation fails, providing an error message.

GetEPI

Method:

GetEPI(serialNo: String, ISV_key:String,APIUrl:String, ResponseTimeout:Int,
Onresult: OnAPIResult)
This method retrieves the current serial number configured EPI.

Parameters:

[IN] serialNo Input for the current device Serial number.
[IN] ISV_key – ISV unique Key
[IN]APIurl – Valor API server URL to send the request. [IN]ResponseTimeout – Timeout for the GetEPI response in seconds.
[IN] OnAPIResult - Callback interface implementing mandatory callback events.

Interface: OnAPIResult

This interface must be implemented by the caller to handle the results of the Get EPI operation.

onSuccess(outputVo:Any?)– Triggered when Get EPI successfully retrieves from the valor portal.
Parameters
outputVo – Output response object containing EPI
String EPI= (String) outputvo;

Onprogress(progressMessage: String?) – Called to provide progress updates during the operation.
onFailure (errorMessage: String?) - Called when GetEPI fails, providing an error message.

GetStoreInfo

Method:

GetStoreInfo(EPI: String,ISV_key: String,APIUrl:String,
ResponseTimeout:Int, Onresult: OnAPIResult)
Retrieves current EPI store information such as store name, address, city, etc.

Parameters:

[IN]EPI Device input for the current device.
[IN] ISV_key – ISV unique Key

[IN]APIurl – Valor API server URL to send the request.

[IN]ResponseTimeout – Timeout for the GetStoreInfo response in seconds.
[IN] OnAPIResult - Callback interface implementing mandatory callback events.

Interface: OnAPIResult

This interface must be implemented by the caller to handle the results of the GetStoreInfo operation.

onSuccess(outputVo:Any?)– Triggered when GetStoreInfo successfully retrieves store information.

Parameters

outputVo – Output response object containing store info
StoreInfo storeInfo = (StoreInfo) outputvo;

Onprogress(progressMessage: String?) – Called to provide progress updates during the operation.

onFailure (errorMessage: String?) - Called when GetStoreInfo fails, providing an error message.

OpenCashDraw

Method:

OpenCashDraw(Onresult: OnResult)

Initiates a command to open the cash drawer connected to the POS device.

Parameters:

[IN] Onresult - A callback interface to handle the result of the cash drawer operation.

Interface: OnResult

Success() Called when the SDK has successfully initiated the command to open the cash drawer.

Onprocess(progressMessage: String?) – Called to provide progress updates during the cash drawer operation.

Fail (errorMessage: String?) - Called when the cash drawer fails to open, returning an error message with details.

Class: DeviceInfoVo

String |[OUT] SerialNum| Device Serial Number

String |[OUT] FirmwareVer | Device Firmware Version

String |[OUT] BatteryPerc | Device Battery Percentage

String |[OUT] BatteryStatus | Device Battery Status

String |[OUT] CT_KernelVer | EMV Kernal Version

String |[OUT] CL_KernelVer| Contactless Kernal Version

String |[OUT] Device_Model| Device Model

String |[OUT] SDKVersion| sdk version

String |[OUT] SMVer| Secure Module version

String |[OUT] Total_DiskSize| Device total disk size

String |[OUT] Total_RamSize| Device total Ram size

String |[OUT] Used_Disksize| Used disk size

String |[OUT] Used_RamSize| Used Ram size

Class:Transactioninfo

Int |[IN] amount | Amount |0-9999999

Int |[IN] processorIndex | Processor Name

Int |[IN] tranMode |Transaction Mode

Int |[IN] tranCode |Transaction Type

Int |[IN] cardReadTimeout | Card Read Timeout in seconds| default value is 30.

Int |[IN] pinInputTimeout | Pin Input Timeout in seconds|default value is 45.

Int |[IN] pinByPass | State of Pin ByPass enable/disable.

0 –not allowed
1 – pinByPass allowed

Int |[IN] fallBackCount | Card Fallback Count default value is 2

Int |[IN] disablePin | State of pin enable/disable.

0 – not allowed
1 – allowed

Int |[IN] allowFallBack | allow Fallback or not.

0 – not fallback
1 –allow fallback

Int |[IN] cashBackamount | cashback Amount |0-9999999

Int |[IN] iPaymentMethod | Payment Methd

Int |[IN] pinKeyIndex| pin key Index

Int |[IN] pinpan| pan number

Int |[IN] pinRequired | pin required or not.

0 –pin not required
1 –pin required

Class: CardInfo

String |[OUT] track1 | Encrypted Track 1 data.

String |[OUT] track2 | Encrypted Track 2 data.

String |[OUT] track2Ksn | Get KSN of the Track 2 data.

String |[OUT] maskedPan | Get Masked Pan Number

String |[OUT] expiryDate | Expiry date of card.

String |[OUT] cardHolderName | Card Holder Name

String |[OUT] DE55Data | TLV data.

String |[OUT] pinBlock | Encrypted pin block.

String |[OUT] pinBlocKsn | pin block ksn.

String |[OUT] aid | Application Identifier

String |[OUT] tsi | Terminal Status Information

String |[OUT] tvr | Terminal Verification Results

String |[OUT] cardLabel | Card Label Information

String |[OUT] applicationLabel | Application Label

String |[OUT] appPreferredName | Application Preferred Name

Boolean |[OUT] isSignMandatory | check Signature is Mandatory

true -Signature Mandatory

false - Signature Not Mandatory

Int |[OUT] pinType | Get Pin Type

0 - Default
1 – Online Pin
2 – Offline Pin

Int |[ OUT] amount | Amount |0-9999999

Int | [ OUT] cashbackAmount | Debit Cashback Amount | 0-9999999

Boolean |[OUT] isFallback| check fallback or not

true - fallback

false - not fallback

Int | [ OUT] tranMode |Transaction Mode

Int | [ OUT] tranCode |Transaction Type

Int | [ OUT] parentMode|Parent Transaction Mode

String |[OUT] serviceCode |Service code.

Int | [ OUT] posEntryMode|pos Entry Mode

String | [ OUT] pan | Card number.

String | [ OUT] issuerScheme| card brand Name.

Int |[OUT] EMVTxnResult|EMV transaction result when failure state

1- EMV_ARQC

2- EMV_AAC

Int | [ OUT] pinResult|pin result when failure state

Class:TranInputVo

String |[IN] txnServerIP | Perform transaction Ip (Demo or Production)

Int |[IN] txnServerPort | Perform transaction Port Number (Demo or Production)

Int |[IN] connectionTimeout | Connection Timeout in seconds default value is 30.

Int |[IN] sendTimeout | Send Request Timeout in seconds default value is 30.

Int |[IN] receiveTimeout | Receive Response Timeout in seconds default value is 30.

Int |[IN] tranMode |Transaction Mode

Int |[IN] tranCode |Transaction Type

Int |[IN] parentTranCode| Parent Transaction Type | not applicable

Int |[IN] amount | Amount |0-9999999

Int |[IN] feeAmount | Custom Fee Amount | 0-9999999

Int |[IN] stateTaxAmt | State Tax Amount | 0-9999999

Int |[IN] stateTaxFeeAmt | State Tax Fee Amount | 0-9999999

Int |[IN] cityTaxAmt | City Tax Amount | 0-9999999

Int |[IN] tipAmount | Tip Amount | 0-9999999

Int |[IN] cashbackAmount | Debit Cashback Amount | 0-9999999

String | [ IN] track1 | Encrypted Track 1 data.

String |[IN] track2 | Encrypted Track 2 data.

String |[IN] track2Ksn | KSN of the Track 2 data.

String |[IN] rrn | Retrieval Reference Number

String |[IN] expiryDate | Expiry Date

String |[IN] cardHolderName | Card Holder Name

String |[IN] pinBlock | Encrypted Pin data.

String |[IN] ksn | Pin block ksn

String |[IN] stanNo | System Trace Audit Number

Int |[IN] fallback | Fallback Type.

0 – Default

String |[IN] terminalId | Terminal Id for fetch transaction.

String |[IN] epiId | Epi Id

String |[IN] profileType | Profile Id

“0”- Traditional

“1” – Surcharge

String |[IN] ebtSerialNo | Serial number for EBT voucher sale.

String |[IN] ebtApprovalCode | Approval code for EBT voucher sale.

String |[IN] cardHolderAddress | Card Holder Address

String |[IN] cardHolderZip | Card Holder Zip

String |[IN] cvv | cvv number

Int |[IN] tipFeeAmt | Tip Fee Amount

Int |[IN] fetchType| Getting data from Fetch Type

1 - Tran no

2 - Card no

String |[IN] tranNumber | Tran Number for getting fetch data.

String |[IN] clerkId | input clerk id

String |[IN] clerkName | input clerk Name.

String |[IN] clerkLabel | input clerk Label

String |[IN] vasLabel1| Additional input vas label 1

String |[IN] vasLabel2| Additional input vas label 2

String |[IN] vasLabel3| Additional input vas label 3

String |[IN] vasData1| Additional input vas data 1

String |[IN] vasData2| Additional input vas data 2

String |[IN] vasData3| Additional input vas data 3

String | [ IN] DE55Data | TLV data

String |[ IN] Last4digitcardNo| pan number last 4 digit

Int |[ IN] batchNo | Batch Number

String |[ IN] batchId | Batch ID

Int|[ IN] cashDiscountAmt | Cash Discount Amount

Int|[ IN] cityTaxFeeAmt| City Tax Fee Amount

Boolean |[ IN] isSignMandatory | Need Signature is Mandatory

true – Signature Mandatory

false- Signature Not Mandatory

String |[ IN] maskedPan | Get Masked Pan Number

String |[ IN] mid | Merchant Id

String |[ IN] pan | Card number

String |[ IN] pinBlocKsn | Get KSN of the pin

String |[IN] pinBlock | Encrypted Pin information.

Int |[ IN] posEntryMode|pos Entry Mode

String |[ IN] responseCode | Response code of transaction

  • "00" - Success
  • "10" – Partial Approved Transaction
  • "VH" - hsm host failed
  • "VT" - hsm invalid data
  • "VI" - hsm invalid format

Int |[ IN] tipAmount | Tip Amount

String [IN] txnId| Unique identifier for each transaction
String [IN] refundMode| Indicates how the refund is processed: based on the original transaction or as a new (fresh) transaction


Class: FetchVO

Int |[OUT] tranMode |Transaction Mode

Int |[OUT] tranCode |Transaction Type

Int |[OUT] parentTranCode| Parent Transaction Type

  • Void = new Trancode().getVOID();
  • Tip adjustment = new Trancode().getTIP_ADJUSTMENT();
  • Ticket = new Trancode().getTICKET();

Int |[OUT] tranAmount | Transaction Amount

String |[OUT] | rrn | Retrieval Reference Number

String |[OUT] dateAndMonth | Transaction date and month

String |[OUT] time | Transaction Time

String |[OUT] year | Transaction Year

String |[OUT] responseCode| Response code of transaction

  • "00" - Success
  • "10" - Partial Approved Transaction
  • "VH" - Hsm host failed
  • "VT" - Hsm invalid data
  • "VI" - Hsm invalid format

String |[OUT] sErrorCode | Error code

Int |[OUT] sEbtBalance | Balance Amount of EBT transaction

Int |[OUT] batch | Batch Number

String |[OUT] shostAuthRespTxt | Host Auth Response Text

String |[OUT] tranNo | Tran Number of transaction

String |[OUT] customFee | Custom Fee Amount

String |[OUT] stateTax | State Tax Amount

String |[OUT] cityTax | City Tax Amount

String |[OUT] tipAmount | Tip Amount

String |[OUT] debitCashBack | Debit Cashback Amount

String |[OUT] cashDiscountAmt| Cash Discount Amount

String |[OUT] stanNo | System Trace Audit Number

String |[OUT] aid | Get Aid value

String |[OUT] tsi | Terminal Status Information

String |[OUT] tvr | Terminal Verification Results

String |[OUT] tid | Terminal Id

String |[OUT] mid | Merchant Id

String |[OUT] epi | Epi Id

String |[OUT] profileId | Profile Id

  • “0”- Traditional
  • “1” – Surcharge

String |[OUT] preferedName | Preferred Name

Int |[OUT] iTipAdjust | Tip Adjusted status

  • 1 – Tip Adjusted
  • Others – Tip not adjusted

Int |[OUT] tipEligible | Tip Adjust Eligible

  • 0 – Not Eligible
  • 1 – Eligible

Int |[OUT] tipFeeAmt | Tip Fee Amount

String |[OUT] clerkId | input clerk id

String |[OUT] clerkName | input clerk Name

String |[OUT] clerkLabel | input clerk Label

String |[OUT] vasLabel1 | Additional input vas label 1

String |[OUT] vasLabel2 | Additional input vas label 2

String |[OUT] vasLabel3 | Additional input vas label 3

String |[OUT] vasData1 | Additional input vas data 1

String |[OUT] vasData2 | Additional input vas data 2

String |[OUT] vasData3 | Additional input vas data 3

String |[OUT] cardHolderName | Card Holder Name

String |[OUT] cardLabel | Card Label Information

String |[OUT] maskedPanz | Get Masked Pan Number

Int | [ OUT] posEntryMode|pos Entry Mode

String |[OUT] authcode| authorization code

String [out] cartType| Type of card used in the transaction (e.g., Credit,Debit, etc.)
String [out] txnId| Unique identifier for each transaction
String [out] refundAmt| Amount refunded for the transaction
String [out] reducedTax| Reduced tax amount applied to the transaction

Class: TranOutputVo

Int |[OUT] tranMode |Transaction Mode

Int |[OUT] tranCode |Transaction Type

Int |[OUT] tranAmount | Transaction Amount

Int |[OUT] isPartialApproved | Partial Approved flag

  • 1 – Partial Approved
  • Other - not partial Approved

Int |[OUT] partialNetAmount | partail Net Amount

String |[OUT] RRN| Retrieval Reference Number

String |[OUT] localDate | Transaction date

String |[OUT] localTime | Transaction Time

String |[OUT] authId** **| Gift card type of Transaction Authorization Id

String |[OUT] responseCode | Response code of transaction

  • "00" - Success
  • "10" – Partial Approved Transaction
  • "VH" - hsm host failed
  • "VT" - hsm invalid data
  • "VI" - hsm invalid format

String |[OUT] terminalId| Response code of terminal Id

String |[OUT] errorCode | This value describes an error code that identifies what type of error occurs

Int |[OUT] balanceAmount | Balance Amount of Ebt Card and gift card types

Int |[OUT] totalTran | Total transaction count

Int |[OUT] batchNo | Batch Number

String |[OUT] adtlRespData | Additional Approval Code

String |[OUT] hostAuthRespTxt | Host Auth Response Text

String |[OUT] txnId | Host Transaction Id

String |[OUT] respText | Response Message

String |[OUT] tranNumber| Tran Number of transaction

List |[OUT] fetchVOList | List of transaction fetch data

List |[OUT] fetchBatchVOList | List of Batch fetch data

List |[OUT] reportSummaryVOList | List of report summary fetch data

List |[OUT] tipSummaryVOList | List of tip summary fetch data

List |[OUT] fetchVOList | List of transaction fetch data

String |[ OUT] issuerScheme| Card brand Name

String |[OUT] MID| Merchant Id

String |[OUT] aid | Application Identifier

String |[OUT] tsi | Terminal Status Information

String |[OUT] tvr | Terminal Verification Results

HashMap<String,Int> |amountTypeVOS | List of amount type

HashMap<String,String> | vasdata | List of additional vas data

String |[OUT] appPreferredName | Application Preferred Name

String |[OUT] authcode| authorization code

String |[ OUT] clerkId | input clerk id

String |[ OUT] clerkName | input clerk Name

String |[ OUT] clerkLabel | input clerk Label

String |[OUT] stanNo | System Trace Audit Number

Boolean |[OUT] isSignMandatory | Need Signature is Mandatory

  • true – Signature Mandatory
  • false- Signature Not Mandatory

String |[OUT] tipAmout | Tip Amount

String |[OUT] totalAmout | Tip Amount

Int |[ OUT] posEntryMode|pos Entry Mode

Int |[ OUT] BalanccetipAmt |Balance Tip amount

Class: PrintInputVo

Boolean |[IN] isOfflineTip| to enable smartTip

  • true – print smart tip
  • false - not print

String |[IN] cardHolderName | Card Holder Name

String |[IN] maskedPan | Get Masked Pan Number

HashMap<String, String > | [IN] smartTips| smarttips in dollar / percentage

Int |[IN] rcptType| receipt type

  • 1 - Merchant Copy
  • 2 – Customer Copy

String |[IN] invoice| invoice number.

Boolean | [ IN] isSignMandatory | Need Signature is Mandatory

  • true -Signature Mandatory
  • false- Signature Not Mandatory

String |[IN] Sigbase64 | Signature base64 format.

List |[IN] HeaderMsg | List of header messages

List |[IN] FooterMSg | List of footer messages.

List |[IN] Disclosure | List of disclosure messages.

List |[IN] promomsg | List of promotional messages.

Class: BatchListVo

String |[OUT] batchId | Batch ID

String |[OUT] batchNo | Batch Number

String |[OUT] ClsdateTime| Batch Close date and Time

String |[OUT] totAmount | Batch total amount

String |[OUT] totcount| Batch transaction Total count

String |[OUT] OpenBdateTime| Batch Open date and Time

Class: FetchInputVo

String |[IN] txnServerIP | transaction Ip (Demo or Production)

Int |[IN] txnServerPort | transaction Port Number (Demo or Production)

Int |[IN] connectionTimeout | Connection Timeout in seconds default value is 20.

Int |[IN] sendTimeout | Send Request Timeout in seconds default value is 20.

Int |[IN] receiveTimeout | Receive Response Timeout in seconds default value is 30.

Int |[IN] tranMode |Transaction Mode

Int |[IN] tranCode |Transaction Type

  • Void, Tip adjustment,Ticket = new Trancode().getFETCH_TXN();
  • Open Summary, Close Summary = new Trancode().getFETCH_SUM();
  • Batch Report = new Trancode().getFETCH_BA_RPT();
  • Detailed Report = new Trancode().getFETCH_DE_RPT();
  • Settlement = new Trancode().getSETTLEMENT();

Int |[IN] parentTranCode| Parent Transaction Type

  • Void = new Trancode().getVOID();
  • Tip adjustment = new Trancode().getTIP_ADJUSTMENT();
  • Ticket = new Trancode().getTICKET();
  • Open Summary = new Trancode().getSETTLEMENT_BEFORE_BATCH();
  • Close Summary = new Trancode().getSETTLEMENT_AFTER_BATCH();

String |[IN] epiId | Epi Id

Int |[IN] fetchType| Getting data from Fetch Type | applicable to transactions like Void,Tip adjustment,Ticket

  • 1 - Tran no
  • 2 - Card no

String |[IN] tranNumber | Tran Number for getting fetch data | applicable to transactions like Void, Tip adjustment,Ticket.

String |[ IN] Last4digitcardNo| pan number last 4 digit | applicable to transactions like Void, Tip adjustment, Ticket.

String |[ IN] batchId | Batch ID | applicable to Detail Report

Int |[ IN] batchNo | Batch Number | applicable to Detail Report

Class: SummaryVO

Int |[OUT] batch | Batch Number

String |[OUT] dashBatchCount | total record count

String |[OUT] dashNonCash | total non-cash charge

String |[OUT] dashTax | total tax

String |[OUT] netAmount | net amount

String |[OUT] batchOpenAt | batch open date and time

String |[OUT] batchClosedAt | batch close date and time

String |[OUT] saleCount | sale transaction count

String |[OUT] saleAmt | sale transaction amount

String |[OUT] voidCount| void transaction count

String |[OUT] voidAmt | void transaction amount

String |[OUT] refundCount | Refund transaction count

String |[OUT] refundAmt | Refund transaction amount

String |[OUT] ticketCount | ticket transaction count

String |[OUT] ticketAmt | ticket transaction amount

String |[OUT] cashSaleCount | cashsale transaction count

String |[OUT] cashSaleAmt | cashsale transaction amount

String |[OUT] cashRefundCount| cashRefund transaction count

String |[OUT] cashRefundAmt| cashRefund transaction amount

String |[OUT] cashBackCount| cashback transaction count

String |[OUT] cashBackAmt| cashback transaction amount

String |[OUT] tipCount | tip count

String |[OUT] tipAmt| tip amount

String |[OUT] cityTaxAmt| city tax amount

String |[OUT] stateTaxAmt| state tax amount

String |[OUT] withdrawlCount| withdrawal count

String |[OUT] withdrawlAmt| withdrawal amount

String |[OUT] closedBatchNo| closed Batch Number

String |[OUT] closedBatchId| closed Batch ID

String |[OUT] giftSaleCount| Gift sale count

String |[OUT] giftSaleAmount| Gift sale amount

String |[OUT] giftAddValCount| Gift add value count

String |[OUT] giftAddValAmount| Gift add value Amount

String |[OUT] giftTipCount| Gift Tip count

String |[OUT] giftTipAmount| Gift Tip amount

List |[ OUT] issSummaryVoList| List of issuer transaction count, amount info

Int |[OUT] newbatch | new Batch Number | only applicable to Settlement

Class: ReportSummaryVO

String |[OUT] maskedPanNumber | Masked Pan Number

String |[OUT] cardLabel | Card Label Information

Int |[OUT] tranAmount | Transaction Amount

String |[OUT] amountOthers| Other amount (TIP)

String |[OUT] taxAmount | Tax amount

String |[OUT] merchantFee| merchant Fee amount

String |[OUT] customFee | Custom Fee Amount

String |[OUT] stateTax | State Tax Amount

String |[OUT] cityTax | City Tax Amount

Int |[OUT] tranMode |Transaction Mode

Int |[OUT] tranCode |Transaction Type

Int |[OUT] parentTranCode| Parent Transaction Type

String |[ OUT] issuer| Card brand Name

String |[OUT] tranNo | Tran Number of transaction

String |[OUT] authcode| authorization code

String |[OUT] date | Transaction date

String |[OUT] time | Transaction Time

String |[OUT] dateAndtime | Transaction date and time

String |[OUT] batch | Batch Number

String |[ OUT] clerkId | input clerk id

String |[ OUT] clerkName | input clerk Name.

String |[ OUT] clerkLabel | input clerk Label

String |[ OUT] vasLabel1| Additional input vas label 1

String |[ OUT] vasLabel2| Additional input vas label 2

String |[ OUT] vasLabel3| Additional input vas label 3

String |[ OUT] vasData1| Additional input vas data 1

String |[ OUT] vasData2| Additional input vas data 2

String |[ OUT] vasData3| Additional input vas data 3

String |[OUT] profileId | Profile Id

  • “0”- Traditional
  • “1” – Surcharge

Int|[ OUT] cashDiscountAmt | Cash Discount Amount

Int |[ OUT] tipFeeAmt | Tip Fee Amount

String |[ OUT] rrn | Retrieval Reference Number

String |[OUT] txnId | Transaction id

Int |[ OUT] issueRefundAmt|Issue Refund Amount

Int |[ OUT] netAmt| Net amount

String |[OUT] responseCode| response code

Class: StoreInfo

String |[OUT] serialNo| EPI configured device Serial Number
String |[OUT] storeName| The official name of the store
String |[OUT] storeSupervisor| Name of the person supervising or managing the store
String |[OUT] storeEmail| Email address for the store.
String |[OUT] storePhone| Store’s contact phone number.
String |[OUT] storeAddress| Full physical address for the store is located.
String |[OUT] storeZip: | Postal or ZIP code of the store’s location.

String |[OUT] storeCity: | City name of the store location
String |[OUT] storeState | State for the store resides
String |[OUT] storeTimeZone | Store operating Time zone

Class: BinLookupInfo

String |[OUT] cardBrand| The brand of the card (e.g., Visa, MasterCard, Amex).
String |[OUT] cardType| The type of the card, usually represented by codes:
1 -> CREDIT,
2 -> DEBIT,
3 -> EBT,
10 -> UNKNOWN.
String |[OUT] cardBin| The first 6 digits of the card number

Class: FetchApiVo

Int |[IN] Epi| Identifier for the device.Int |[IN] processorIndex | Processor Name
Int |[IN] ISVkey| Unique key for ISV User
Int |[IN] dateFilter| Filter the transaction records based on their date. Default is Recent – 0

Int |[IN] transactionType| Type of transaction (sale, refund, etc.). Default is ALL - 0

Int [IN] cardScheme| Type of card used (VISA, MASTERCARD, etc.). Default is ALL - 0


String [IN] filterType| Generic filter the transaction for specific fields like EPI, RRN etc. Default NONE-“”


String [IN] filterText| The value used to search or filter transactions based on the selected filter type (e.g., EPI, RRN, TXN_ID, etc.).

String [IN] startDateRange & endDateRange |Date range filters Except format is yyyy-MM-dd

[IN]ResponseTimeout – Timeout for the response in seconds. Default 30Seconds

[IN]requesturl – Valor API server URL to send the request.

Import AAR file in Android Studio

To import an .aar (Android Archive) file into your Android Studio project, follow these steps:

Download the aar file VP ARR

  1. Copy the .aar file:
  • Copy the .aar file into the libs directory of your Android project. If it doesn't exist, create it under your app module.
  • Example path: app/libs/your-library.aar
  1. Add the .aar as a module dependency:
  • In Android Studio, go to File > New > New Module.
  • Select Import .AAR Package.
  • Browse and select the .aar file you copied to the libs directory.
    Click Finish.
  1. Add the dependency to your app's build.gradle file:
  • Open your app-level build.gradle file (typically app/build.gradle).
  • Add the following line inside the dependencies block to link the .aar file:




Transaction Type

1   SALE
2   VOID
3   PRE_AUTH
4   TICKET
5   RETURN
6   EBT_VOUCHER_SALE
7   EBT_VOUCHER_RETURN
8   EBT_BALANCE
9   SETTLEMENT
20  TIP_ADJUSTMENT
35  REVERSAL_TRANSACTION
38  BALANCE_ENQUIRY
39  FETCH_TXN
41  SETTLEMENT_AFTER_BATCH
42  SETTLEMENT_BEFORE_BATCH
43  FETCH_SUM
47  FETCH_BA_RPT
48  FETCH_DE_RPT
44  WITHDRAWAL
49  GIFT_ACTIVATION
50  GIFT_DEACTIVATION
51  GIFT_ADDVAL

Transaction Mode

1   CREDIT
2   DEBIT
3   EBT FOOD
4   EBT CASH
5   GIFT CARD
6   CASH

Payment Method / POS Entry Mode

1  Manual Card Present: The card is physically available at the merchant.
2  Manual Card Not Present: The physical card is not available; only the card number is provided.
3  Swipe: The cardholder swiped the card through the POS terminal.
4  CHIP: The card is inserted into the POS terminal and reads the chip.
5  TAP (CHIP-based): The cardholder taps a contactless CHIP-based card on the card reader.
6  TAP (Swipe-based): The cardholder taps a swipe-based contactless card on the reader.

Processor

1    TSYS
2    FDR OMAHA(F/B)
3    FDR NORTH / CARDNET
4    FDR NORTH / BUYPASS
5    FDR NORTH / NASHVILLE
7    EPX
9    PRIORITY PAYMENT

Please see the link for VP SERIES SDK

Demo Server:

Lookup Hostname: switch-staging.valorpaytech.com

Production Server

Lookup Hostname: switch-prod.valorpaytech.com

How To Load APK Via ADB

To install ValorPay apps via ADB (Android Debug Bridge), follow these

Enable Developer Options on the Android Device:

  • Go to Settings > About Phone.
  • Tap Build Number repeatedly until you see "You are now a developer!".
  • Go back to Settings > Developer Options and enable USB Debugging.

Install ADB on Your Computer:

This command will automatically download and install ADB. Scoop will let you know if you're lacking any of the dependencies. If it asks you to install them, type Y and press Enter on your keyboard to allow it.

scoop install adb

That's it! ADB is ready to deploy. You'll need to input different commands if you're using other platforms. The command for Linux would be:

sudo apt-get install android-tools-adb

Launch the Terminal

Can use a terminal such as Command Prompt to operate ADB.

  • Open the folder in File Explorer.
  • On your keyboard, press Alt + D. This will highlight the address bar.
  • In the address bar, type cmd and then press Enter.

Connect to Your Android Device With ADB

Enable USB debugging to connect to your Android device. With USB debugging enabled, connecting your device to your computer with a USB cable will automatically connect it to ADB. If a prompt comes up on your Android device, accept it to grant your computer the required permissions.

To ensure you're connected, run the command below in Command Prompt:

adb devices

Connect Wirelessly

If you're keen on connecting wirelessly, go to your Android device's Developer options and enable Wireless debugging and Wireless ADB debugging.

Then head back to Settings, go to About phone, and tap on Status. Scroll down and jot down your device's local IP.




With everything ready, it's time to connect your Android device wirelessly. Ensure the two devices are on the same connection (your home Wi-Fi, for instance). Open Command Prompt, replace the IP in the command below with your device's IP, and then run it.

adb connect 192.168.1.128

Once you run this command, a prompt will appear on your Android device. Allow it to give your computer debugging permissions. Now run the command below to see a list of connected devices. Your device's IP address should be listed

adb devices

Install the APK With ADB

Finally, it's time to install the APK file on your Android device. This final step is easy as pie—assuming that you've opened Command Prompt in the same directory as your APK files and are connected to your Android device.

It takes one simple command to install APK files with ADB:

Replace VALORSTORE.apk with your file's name in the command above and run it in Command Prompt. The .apk extension is necessary, so don't leave it out!

ADB should reply with Performing Streamed Install. This will take a while, depending on the app and your device. Once the installation is complete, ADB will return Success.

APK is now successfully sideloaded on your Android device, and you didn't even have to move the files. You had to accept some prompts on your Android device to grant some permissions since this was the first time, but from now on, all you need to do is to connect and install.

Possible error messages for startTran

  • Onresult.Fail("SDK Not Initialized"): This indicates that the Software Development Kit (SDK) has not been initialized before attempting the operation.
  • Onresult.Fail("Invalid TranMode"): The transaction mode (TranMode) provided is invalid. The system might be expecting a specific mode (like credit, debit, or other types), and the provided mode does not match the expected values.
  • Onresult.Fail("Invalid TranCode"): The transaction code (TranCode) is incorrect or invalid. This could be a code used to identify the type of transaction (purchase, refund, etc.), and the one provided isn't recognized by the system.
  • Onresult.Fail("Invalid Amount"): The transaction amount provided is invalid.
  • Onresult.Fail("Gift Card Transaction Not Supported"): This error indicates that the system does not support transactions involving gift cards.
  • Onresult.Fail("Cashback Amount Not Supported"): The system doesn't support cashback amounts in the transaction. If a request for cashback was made, it would be rejected with this error.
  • Onresult.Fail("P2P Key Not Available"): This error suggests that a required key for a Peer-to-Peer (P2P) transaction is not available. P2P transactions often require specific encryption keys, and if those aren't available, the transaction cannot proceed.

Possible error messages for PerformTxn

  • Onresult.onFailure("SDK Not Initialization", null, 0): The SDK was not properly initialized before attempting the transaction.
  • Onresult.onFailure("Invalid EPI ID", null, 0): The provided EPI (Electronic Payment Interface) ID is invalid.
  • Onresult.onFailure("Invalid TxnServerIP", null, 0): The IP address for the transaction server is invalid.
  • Onresult.onFailure("Invalid TxnServerIP or TxnServerPort", null, 0): The transaction server’s IP address or port is incorrect or unreachable.
  • Onresult.onFailure("Invalid TranCode", null, 0): The transaction code provided is invalid.
  • Onresult.onFailure("EBT Serial n.o, Approval code or PAN details are missing", null, 0): Missing critical information, such as the serial number, approval code, or PAN (Primary Account Number) details.
  • Onresult.onFailure("Tip, Fee or Tax Amount not Support", null, 0): The system does not support processing tip, fee, or tax amounts.
  • Onresult.onFailure("Invalid Amount", null, 0): The transaction amount is not valid.
  • Onresult.onFailure("Tip Amount not Support", null, 0): The tip amount is not supported for the transaction.
  • Onresult.onFailure("PinBlock Missing", null, 0): Missing pinblock data, which is crucial for processing PIN-based transactions.
  • Onresult.onFailure("CashBack Amount no Support", null, 0): The system does not support cashback for the transaction.
  • Onresult.onFailure("Invalid PinBlock", null, 0): The pinblock provided is invalid.
  • Onresult.onFailure("PinBlocKsN Missing", null, 0): Missing the PinBlocKsN, which could be related to the PIN block number or other necessary data.
  • Onresult.onFailure("Invalid PinBlocKsN", null, 0): The PinBlocKsN provided is incorrect.
  • Onresult.onFailure("EMV/CLSS DE55Data Missing", null, 0): The required EMV/CLSS (Europay, MasterCard, and Visa Contactless) data in DE55 format is missing.
  • Onresult.onFailure("Tip Amount no Support", null, 0): Another mention of the system not supporting a tip amount for the transaction.
  • Onresult.onFailure("Pan Number or Expiry Input Wrong", null, 0): The PAN (card number) or expiry date provided is incorrect.
  • Onresult.onFailure("Card Not Present Not Support", null, 0): The system does not support transactions where the card is not present (e.g., for online transactions or phone payments).
  • Onresult.onFailure("Serial number is Wrong", null, 0): The serial number provided is incorrect or invalid.
  • Onresult.onFailure("Pan Number Input Wrong", null, 0): The PAN (Primary Account Number) input is wrong.
  • Onresult.onFailure("Invalid Profile Type", null, 0): The provided profile type is invalid for the transaction.
  • Onresult.onFailure("Fee Not Supported To Traditional Profile", null, 0): Fees are not supported in the traditional profile for the transaction.
  • Onresult.onFailure("Key Not Available", null, 0): A required encryption or transaction key is missing.
  • Onresult.onFailure("Invalid STAN Number", null, 0): The STAN (System Trace Audit Number) provided is invalid.
  • Onresult.onFailure("Socket connection failed", TranOutputVo, 0): The connection to the server failed, possibly due to network issues.
  • Onresult.onFailure("Invalid ISO", TranOutputVo, 0): The ISO 8583 message or data format is invalid.
  • Onresult.onFailure("Transaction Declined", TranOutputVo, 0): The transaction was declined for some reason.
  • Onresult.onFailure("HSM RETRY ERROR", TranOutputVo, 0): An error occurred while trying to interact with the Hardware Security Module (HSM).
  • Onresult.onFailure("FORMAT ERROR", TranOutputVo, 0): A formatting error occurred, possibly due to incorrect message .
  • Onresult.onFailure("HSM_INVALID_DATA", TranOutputVo, 0): The data sent to the HSM was invalid.
